ARCHITECTURAL COLLECTION

RTS430i

Impact Rated Thermally Broken Stainless Steel Series

RELIANT AND VERSATILE

Optimum’s RTS-430i Stainless Steel Thermally Broken Windows and Doors are engineered to deliver exceptional performance while maintaining traditional steel sightline proportions. Designed to accommodate (a wide variety of glass configurations) The RTS-430i can accommodate laminated Hurricane Monolithic and Insulated glass in various thicknesses. The system delivers thermal-efficiency, hurricane safety, state-of -the-art  multi-point technology and acoustic performance, all without compromising aesthetics. Built in a non-corrosive stainless steel, the RTS-430i allows for larger spans and increased structural versatility, while preserving the classic, narrow steel lines architects, homeowners, and designers expect. Its refined sightlines provide a clean, elegant appearance suited for both contemporary and historically inspired projects. The RTS-430i has met and exceeded rigorous performance standards across North America, proudly holding NFRC Certification as well as Florida Product Approval, including compliance with Miami HVHZ (High Velocity Hurricane Zone) and Wind Zone 3 requirements. Optimum offers a full product catalogue within the RTS-430i platform, including casement windows, fixed windows, sliding doors, bi-fold systems, and large-span configurations, delivering complete design flexibility. The system is available in various stainless steel material options and can be finished with high-performance AAMA 2604 or AAMA 2605 powder-coating, ensuring long-term durability in even the most demanding environments. Through advanced precision welding, state-of-the-art fabrication technologies, and custom manufacturing to exact specifications, Optimum collaborates closely with architects and design professionals to deliver solutions that combine structural integrity, beauty, longevity and safety.
  • Thermally Broken Hot-Rolled Steel window sections
  • Stainless Steel 304 Material; Corrosion resistant
  • 2 9/16” exterior frame depth
  • EPDM Weather-Stripping
  • Excellent Thermal Values
  • True Divided Lites & Applied SDLs available.
  • Zinc Rich Epoxy Primer
  • Limited Operation Stops available.
  • Multi-Point Locking Hardware available
  • Options for Premium and Custom Hardware available
  • Electrostatically applied, colored, polyester powder coated finish.
  • Meets AAMA 2604 specification (2605 optional)
  • 10 year warranty on Powder Coated Finish.
  • Monolithic Glazing option available.
  • Non-Metallic Custom Color Match option available.

PERFORMANCE

Engineered Excellence

  • Meets or exceeds air infiltration test criteria in accordance with ASTM E283
  • Meets or exceeds water penetration test criteria in accordance with ASTM E331
  • Meets or exceeds structural test in accordance with ASTM E330

Contact Optimum Window to review applicable testing and design performance data for your specific project

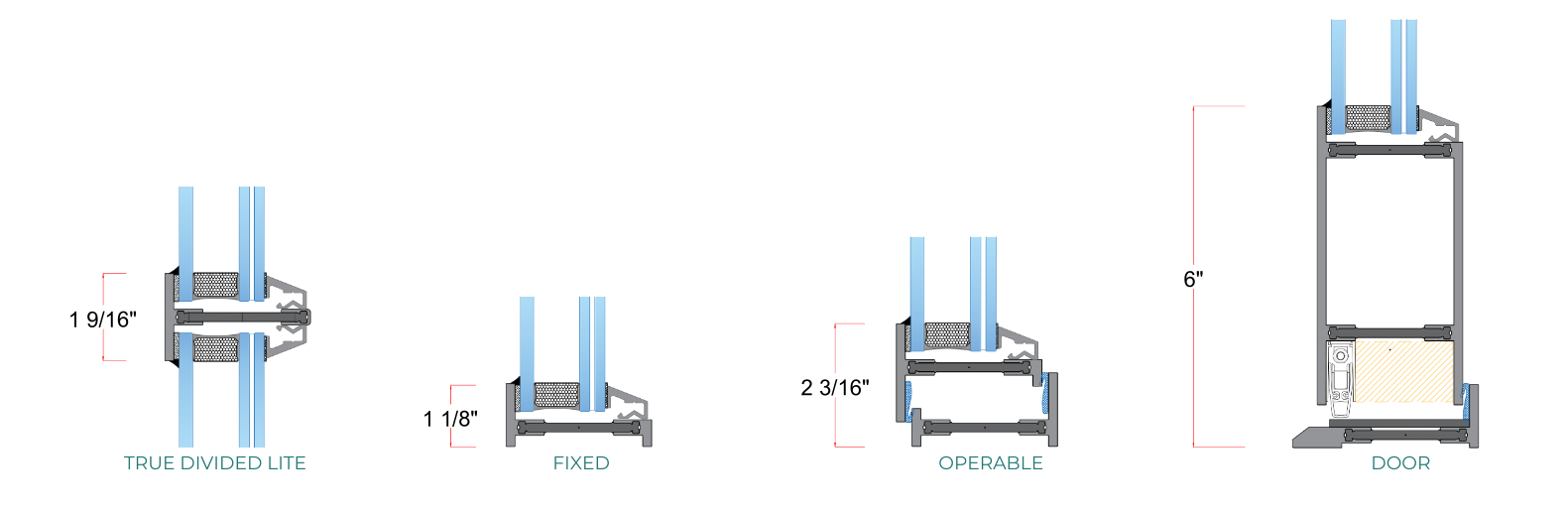

STANDARD PROFILES

RTS430i

Impact Rated Thermally Broken Stainless Steel Series

General Specs Sheet
RTS430i

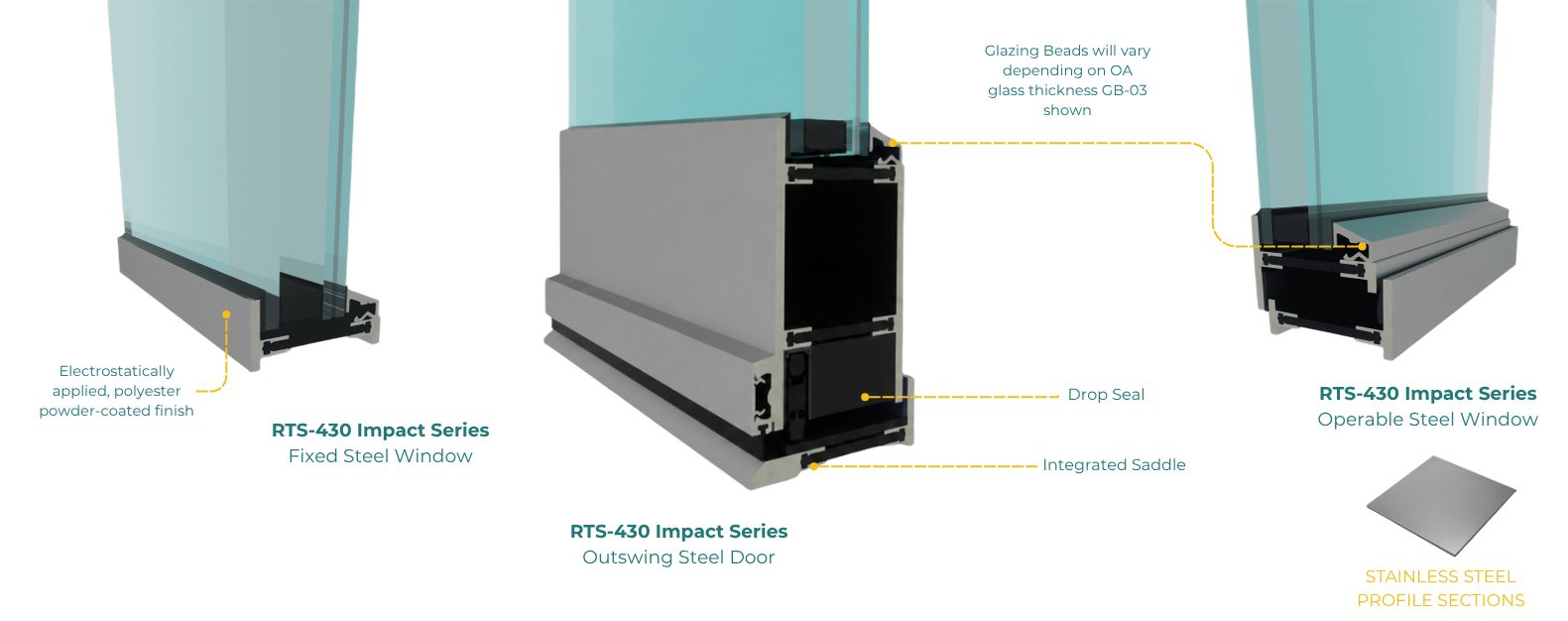

(Glazing Beads will vary depending on OA Glass Thickness)

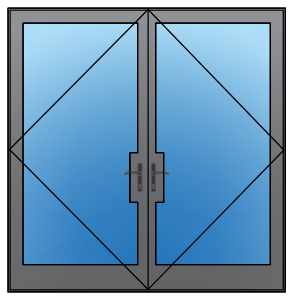

SYSTEMS

Available Configurations

430i FIXED

Fixed

Specs & Options

  • Thermally Broken Hot-Rolled Steel window sections
  • Stainless Steel 304 Material; Corrosion resistant
  • 2 9/16” exterior frame depth
  • EPDM Weather-Stripping
  • Excellent Thermal Values
  • True Divided Lites & Applied SDLs available.
  • Zinc Rich Epoxy Primer
  • Limited Operation Stops available.
  • Multi-Point Locking Hardware available
  • Options for Premium and Custom Hardware available
  • Electrostatically applied, colored, polyester powder coated finish.
  • Meets AAMA 2604 specification (2605 optional)
  • 10 year warranty on Powder Coated Finish.
  • Monolithic Glazing option available.
  • Non-Metallic Custom Color Match option available.

Dimensions

Minimum

12" x 12"

Width × Height

Maximum

60” x 144”

Width × Height
